The Graco electric sprayer for protective coatings approved for hazardous locations

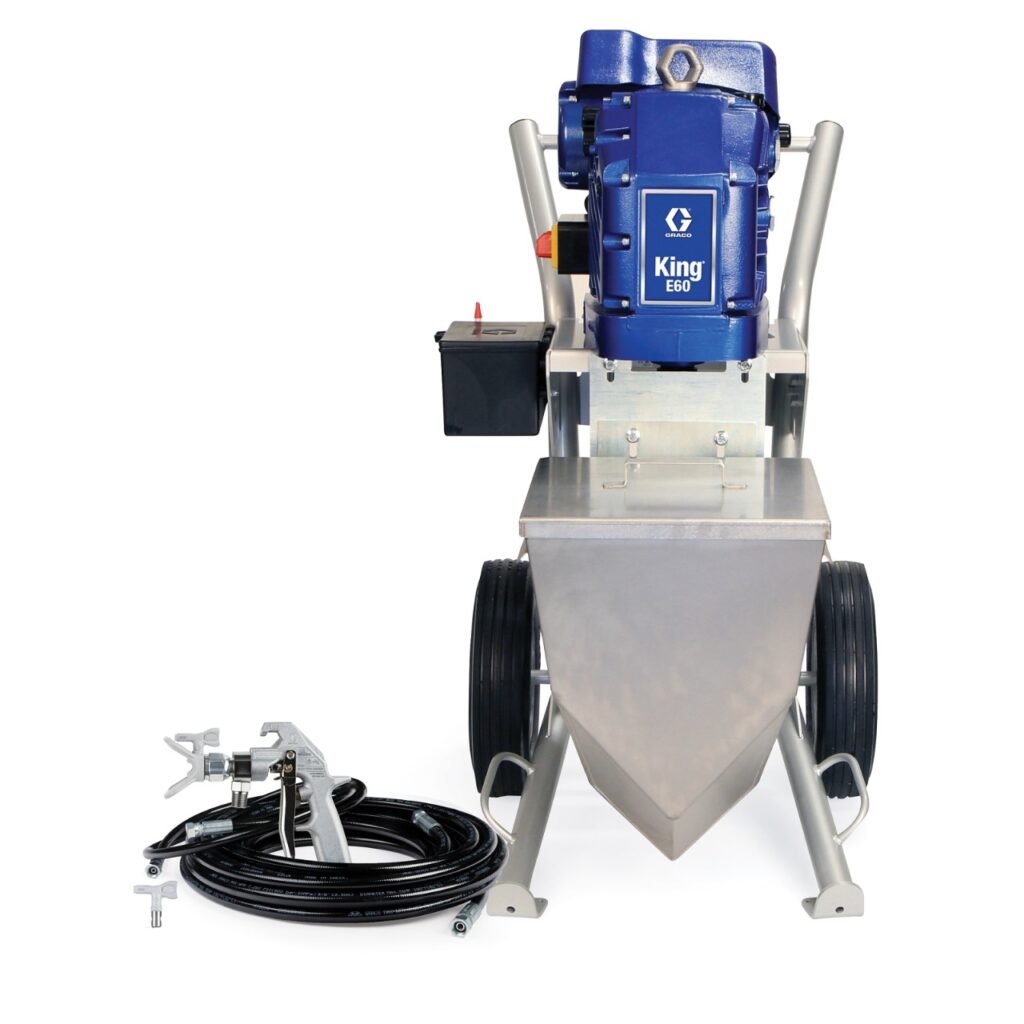

The Graco King E-series electric airless sprayer is for protective coatings and select models have been approved for hazardous locations. The King E-series operates on a more reliable, convenient and available electric power source, which removes job site reliance on compressed air. Furthermore, electric technology reduces pulsation and eliminates motor icing, making your jobs run smoother every single time.The Graco’s Industrial sprayer is now available with ATEX approval and thus Graco E King E60 was launched.
Electric - when wired correctly, electric power is safe, reliable and convenient for you and your customers. Free your operation from the reliability on an air compressor. The days of essential maintenance on large-scale compressors are over.
No icing - by eliminating the need for an air motor, icing problems are reduced. Icing may be more prevalent under conditions of a high level of humidity, resulting in a slowing of the motor and loss of pressure which can be detrimental to your production rates. The e-Xtreme sprayer is an electric solution that will keep you spraying at the pump’s maximum potential.
Reduced noise - no matter the application, noise exposure can dramatically affect your working conditions. The quiet electric motor improves working conditions significantly. When compared to an air motor, the King E-series is up to five times quieter.
Plug-in & Spray - the King E-series runs on multiple power options (120V or 240V). Able to handle Graco’s most popular airless spray tip sizes with a consistent pattern thanks to the low rate of pulsation. This smooth pattern is noticeable at the gun. Capable of spraying most high-solid coatings – it is sure to quickly become your go-to KING!
ATEX approved - get the job done safely: compared to other electric sprayers, the King E-series is approved for hazardous locations. ATEX, IECEx, and Class 1, Div. 1 approvals* mean this KING can be used in chemical plants, paint shops, refineries, off-shore, or any location where generating a spark is of concern.
Energy savings - with improved efficiency and an overall lower cost of ownership, the King E-series is the most cost-effective solution when compared to pneumatic airless sprayers. The King E-series saves up to 80% of energy costs when compared to an air operated sprayer*. By removing the need for an expensive, heavy air compressor, you can stay productive by using the most reliable power source available – electricity! *Study completed for a pump pressure of 241 bar (3500 psi) for 20 hours/week; spraying 1226 L (324 gal) of 73% volume solids epoxy with XHD519 tip.
Model | E60 King Electric Sprayer |
Maximum fluid working pressure | 414 Bar (6000 psi, 41.4 MPa) |
Maximum continuous cycle rate | 44 cycles per minute |
Tip Size | .021 in. |
Weight | 134 kg |
Operating temperature range | -5° to 50° C |
Input power | 115A @ 200-240V, 50/60 Hz, single phase |
Minimum Recommended generator size | 5 kW |
Minimum Hose length | 15 m |
